Insulated partitions and sandwich sections

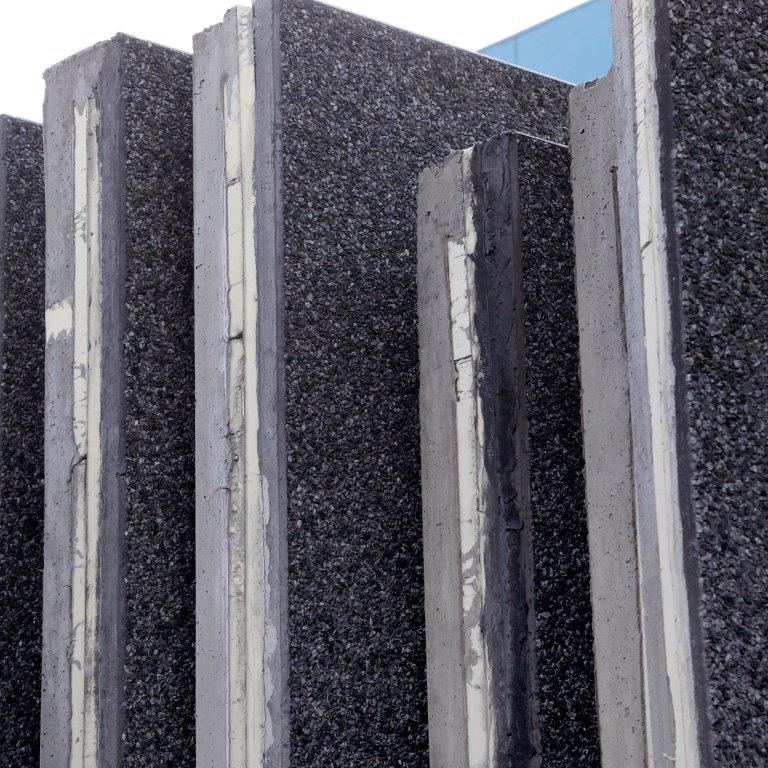

Insulated concrete panels are self-supporting and are mainly used as facade panels or as partitions, even in spaces that need to be EPB compliant. They can be equipped with various types of insulation and comprise an outer and inner concrete sheet with the desired insulation membrane in between.

They are attached to a specially designed concrete or steel structure and come in various finishes.

Characteristics

Our insulated concrete panels are available in ALL thicknesses between 20cm and 45cm.
The maximum panel height is 400cm.
The panel length is limited to 12m.
We use high-grade PIR insulation with vapor barrier.
Our sections come with a tooth/groove profile as standard, but can be supplied without, as desired.
The exterior layer is poured on a metal formwork, ensuring it’s nice and smooth.
The sections are supplied ready for horizontal assembly and are self-supporting. Also equipped with eyebolts for assembly.

Finishing options

Brushedconcrete panels (silex)
Texture mat concrete partitions
Smooth concrete partitions

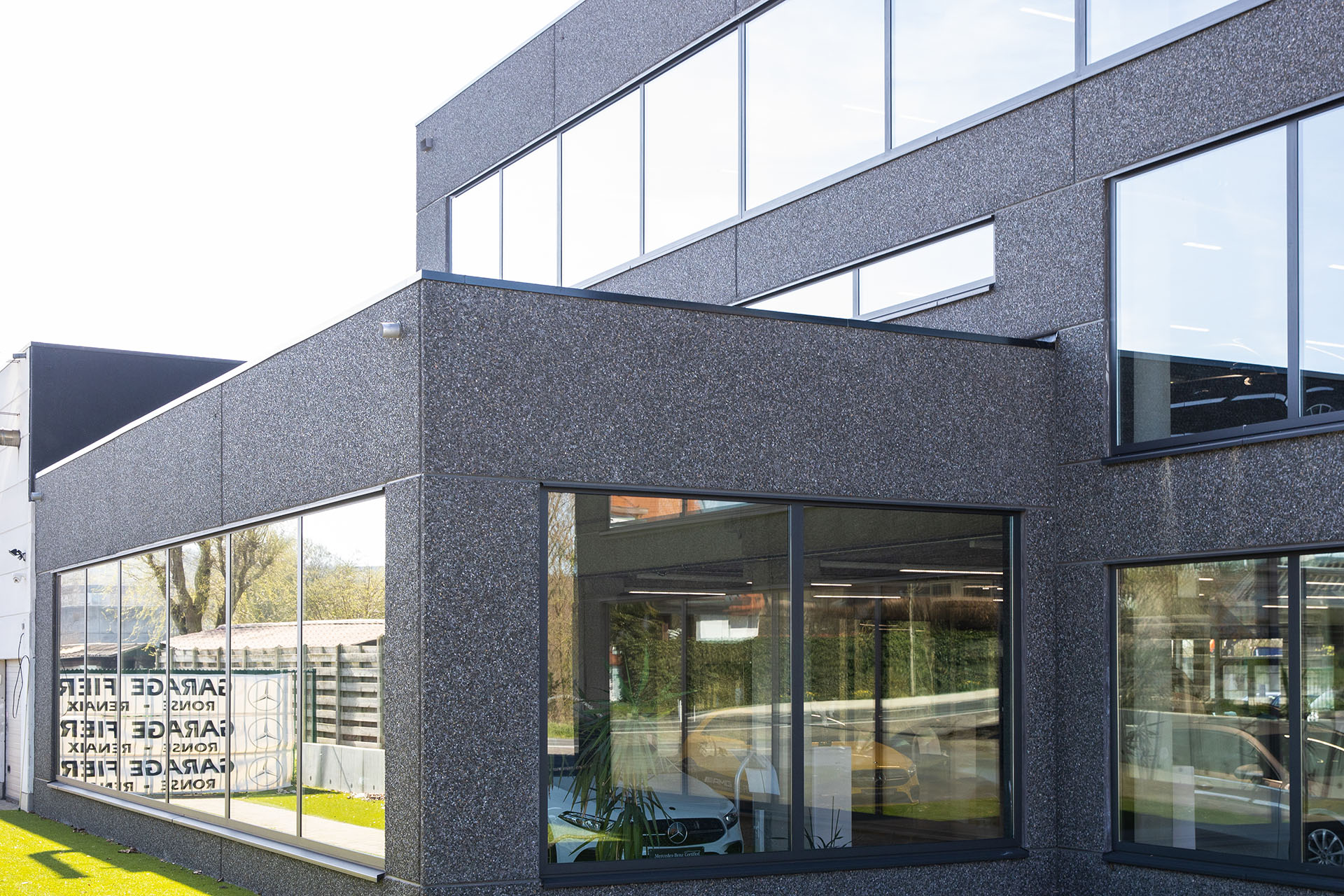

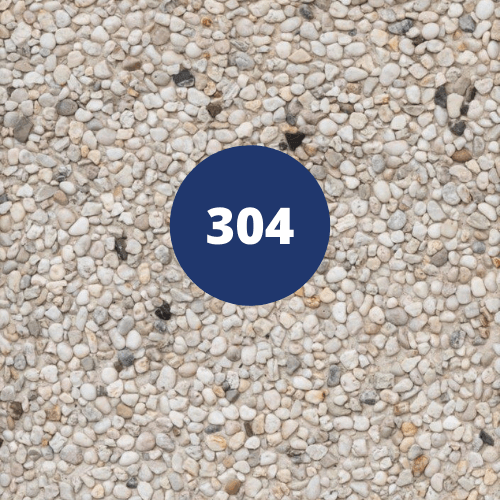

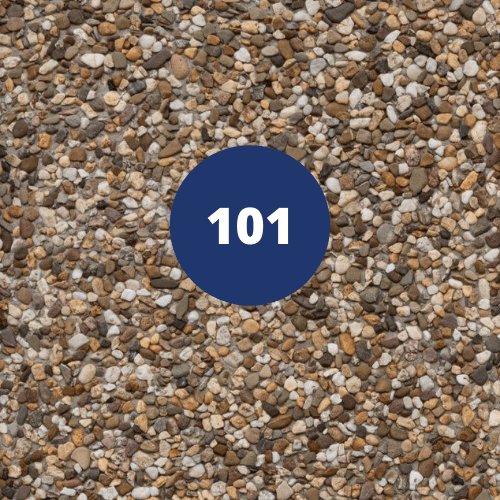

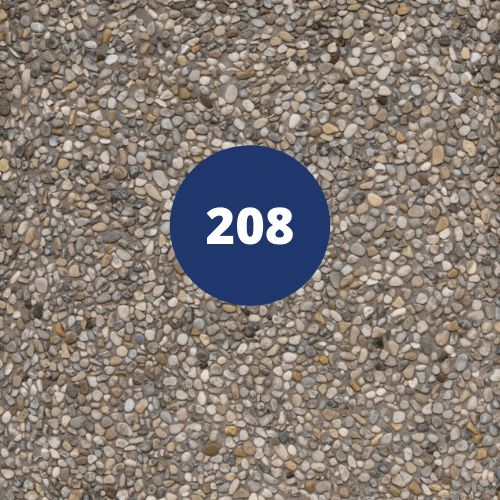

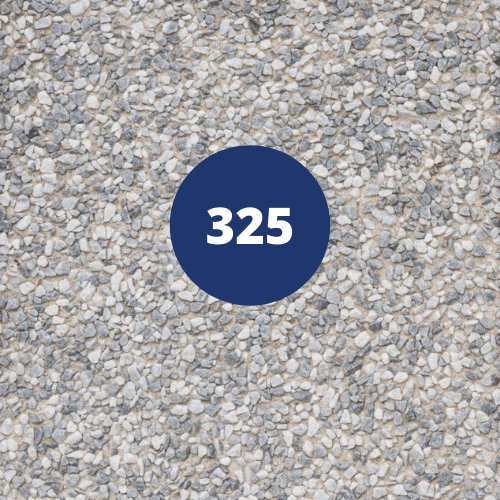

Brushed concrete panels (silex)

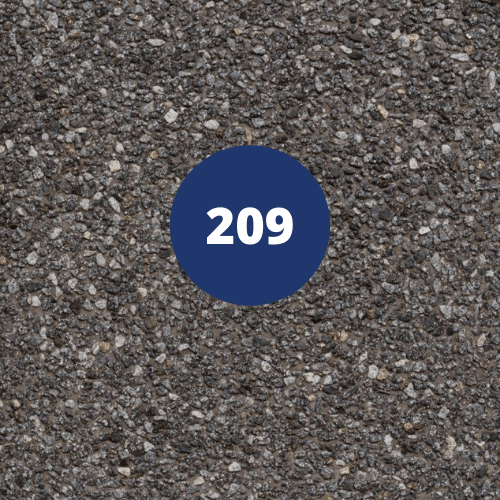

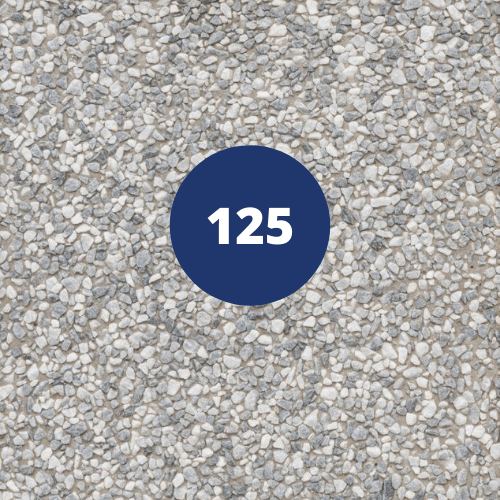

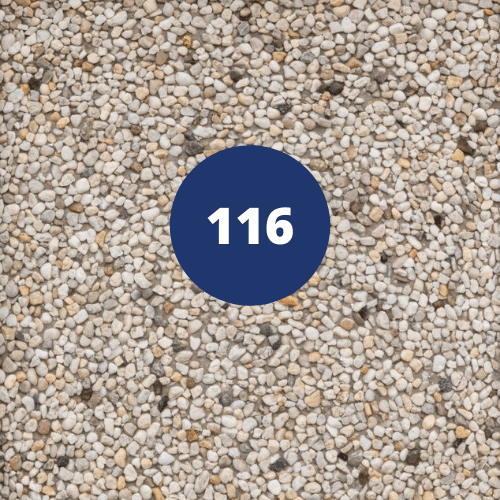

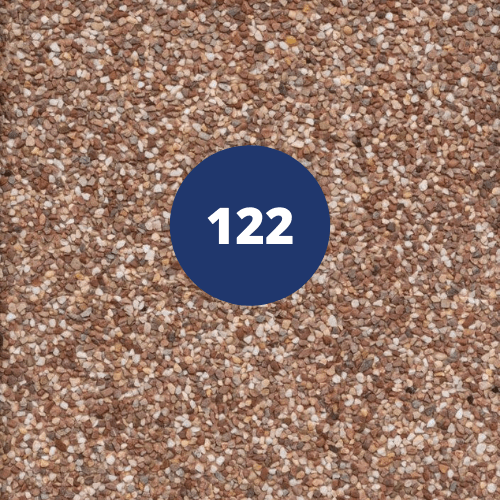

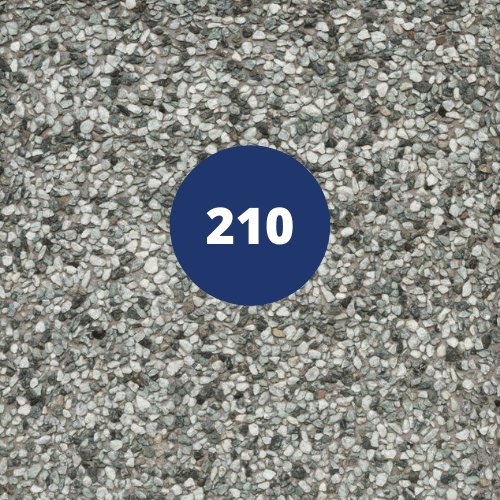

Brushed concrete panels give your building a classy look. They are low maintenance and colourfast. We offer a choice of 25 colours. The look of the facade panel depends on the type of natural stone used. The inner side is rubbed.

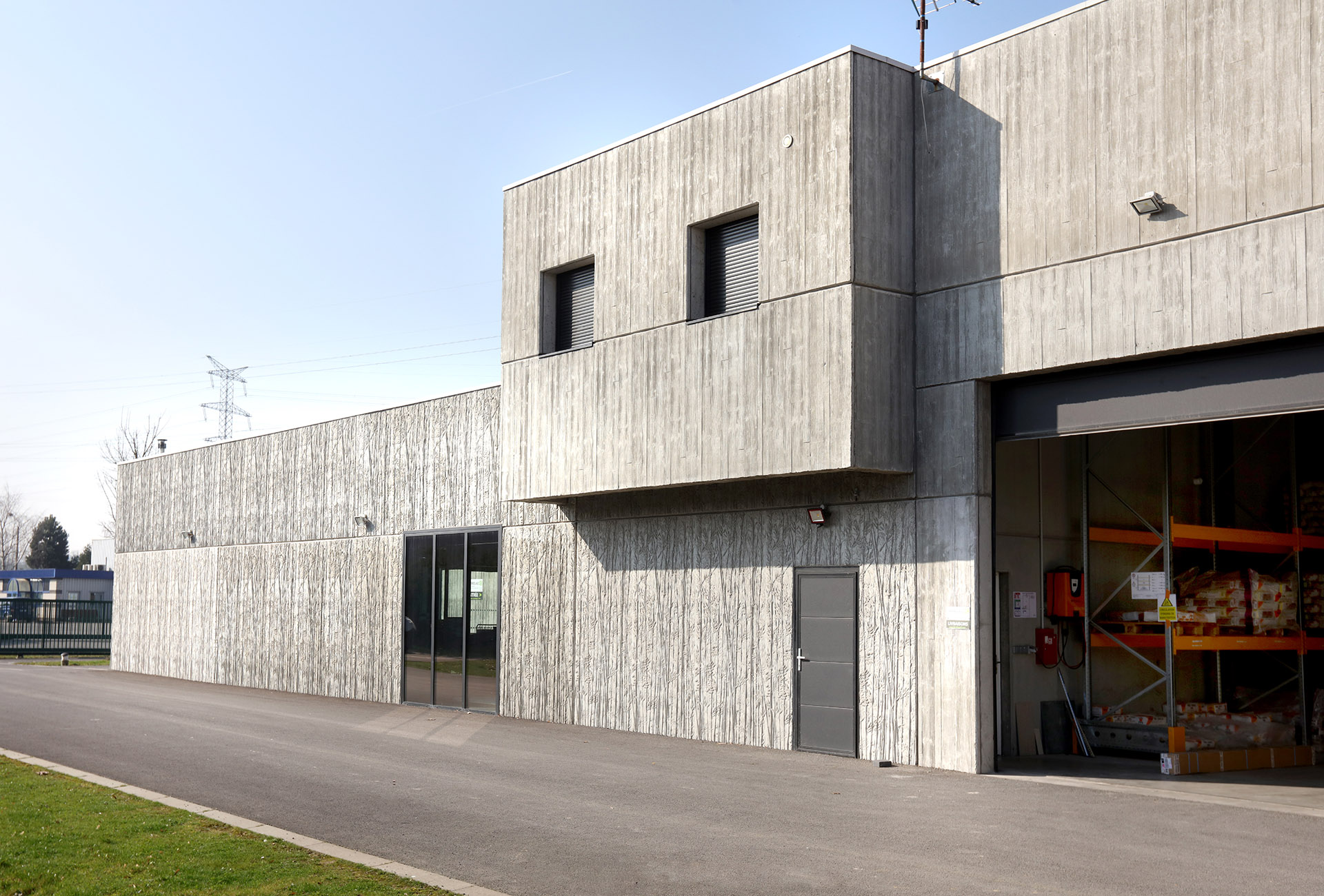

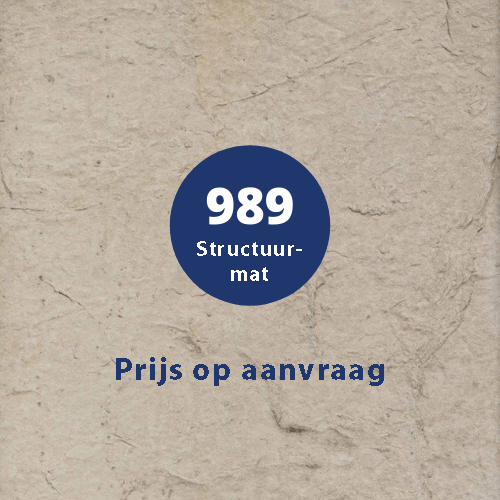

Texture mat concrete panels

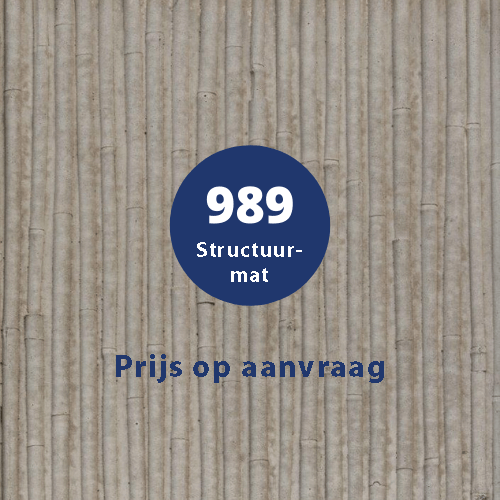

A specific texture mat or pattern can give concrete a special look. There are lots of options to choose from; everything from an industrial look to a bamboo structure.

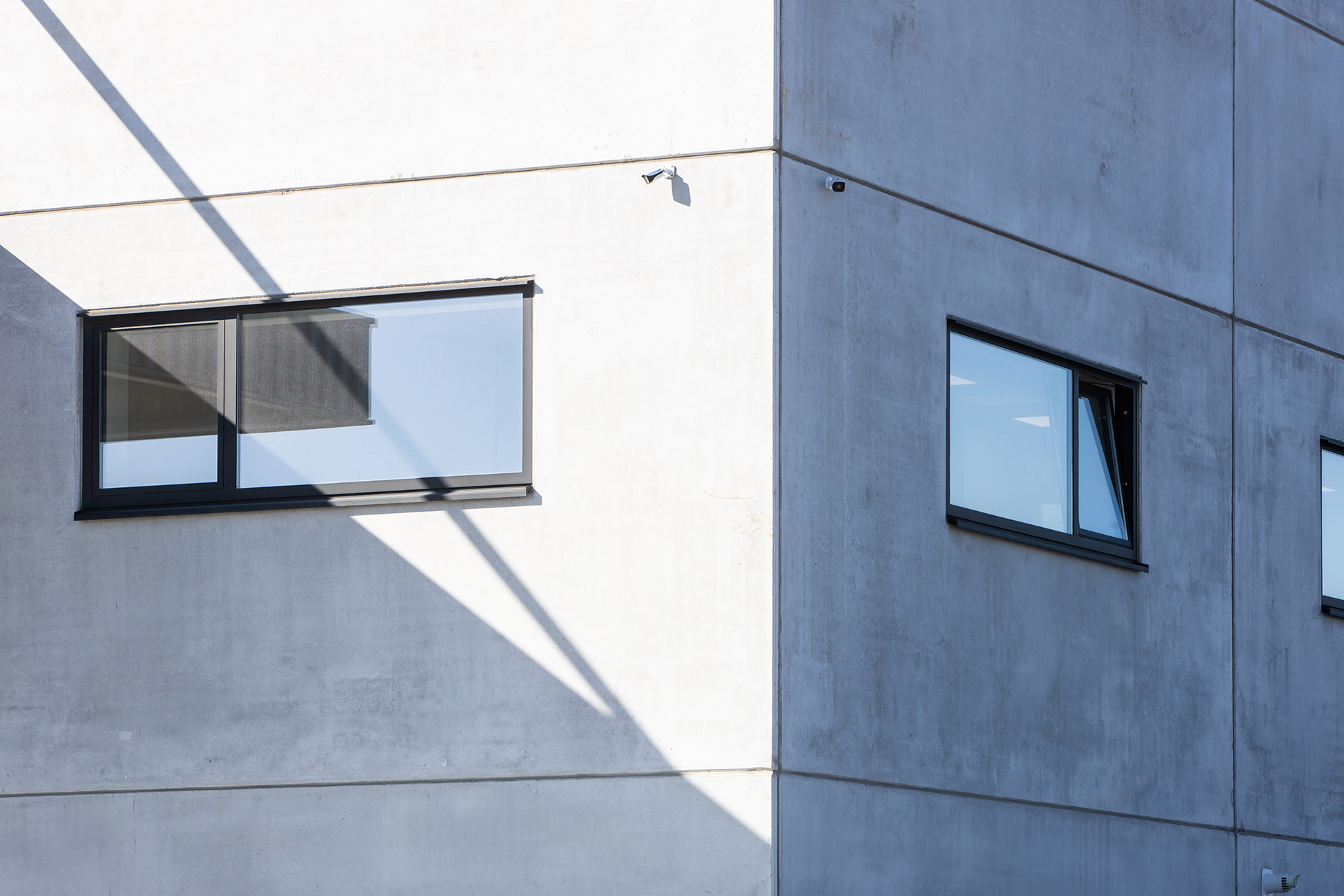

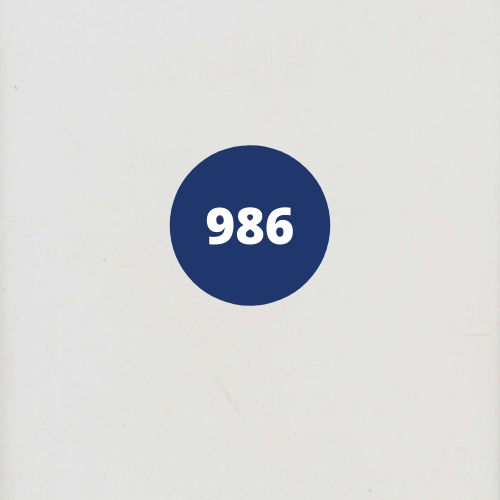

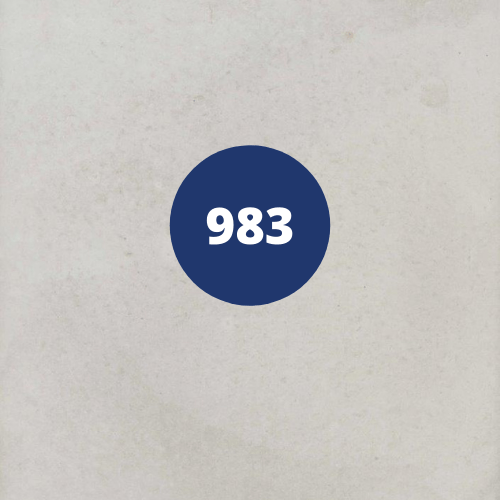

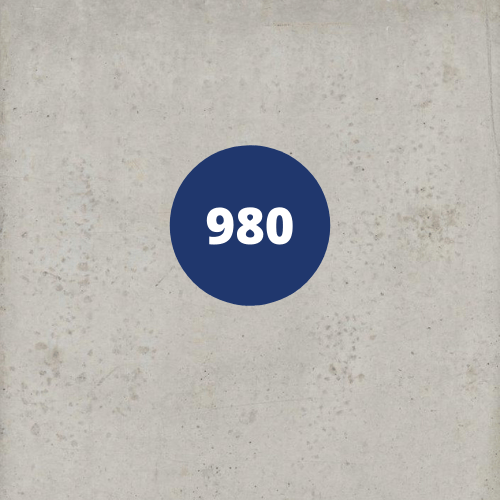

Smooth concrete partitions

These give your building an industrial, architectural look. These panels can be made in two grey tints or even all white by adjusting the type of concrete and adding dyes.
